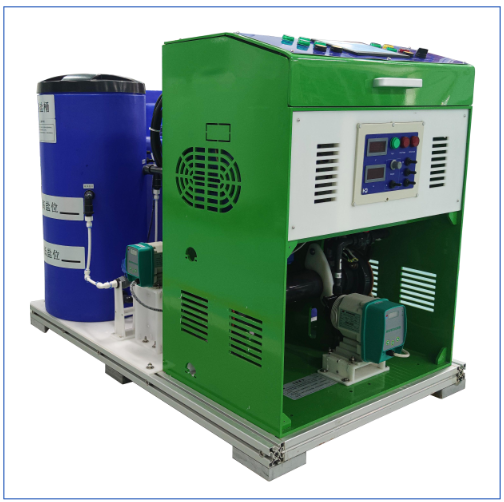

Continuous sodium hypochlorite preparation device

Sodium Hypochlorite (NaOCl) is a strong oxidizing agent created by the electrolysis of saltwater. It is used as a replacement for chlorine gas to disinfect drinking water, cooling towers, swimming pools, water cooling systems, etc., with the function of limiting the growth of microorganisms.
Sodium Hypochlorite produced on-site from saltwater or seawater is an effective method to prevent the outbreak of various microorganisms, including algae and crustaceans.

PRINCIPLE OF OPERATION

• The raw materials used for production are only electricity, water, and table salt.
• Active chlorine, a strong disinfectant, is generated without the need for storage or transportation.
• Sodium Hypochlorite produced by electrolysis of saltwater on-site does not degrade like chemically-produced sodium hypochlorite.
• Production costs are lower than traditional chlorine production methods.
• Disinfectants are produced as needed, with no waste.
• Waterchlo ensures that the sodium hypochlorite product does not degrade.

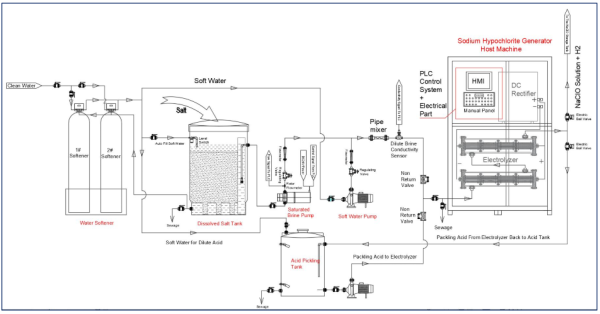

In the electrochemical cell, the high-conductivity saltwater maintains the current from the anode to the cathode. This current electrolyzes the salt solution, producing chlorine gas (Cl2) at the positive electrode (Atot). Chlorine then combines with sodium hydroxide to form sodium hypochlorite. This reaction can be represented as:

NaCl + H2O + Electrical Energy = NaOCl + H2
(Salt) + (Water) + Electrical Energy = (Sodium Hypochlorite) + (Hydrogen)

The electrolysis method for producing sodium hypochlorite yields 1kg of active chlorine from 4-5 kg of table salt and 6-8 kWh of electrical energy. The concentration of active chlorine in the product solution is approximately 0.8%.
Electrolyzed Sodium Hypochlorite: Highly effective disinfection, very affordable, completely safe, and easy to produce and use.
