Ecoplus Single-Room Heat Recovery Fresh Air System (Ceramic Core)
Eco Pair Plus – Máy cấp gió tươi hồi nhiệt AP-AV-TTW5-W gắn ống, động cơ EC đảo chiều với mức tiêu thụ năng lượng thấp chỉ 7.8W, 3 chế độ tốc độ. Hoạt động yên tĩnh với độ ồn tối đa 32.7dB(A). Giám sát chất lượng không khí trong nhà, ngăn ngừa nấm mốc, và bộ lọc F7 tiêu chuẩn. Giải pháp thông gió hiệu quả cho phòng diện tích lên đến 25 m2
🔹 Lưu lượng khí cấp/xả tối đa lên tới 50/35.3 m3/h
🔹 Hiệu suất thu hồi nhiệt lên tới 97%
🔹 Giám sát chất lượng không khí trong nhà (nhiệt độ ngoài trời + CO2 trong nhà).
🔹 Ngăn ngừa nấm mốc. Bộ lọc trước và bộ lọc F7 (MERV11) tiêu chuẩn giữ không khí sạch sẽ.

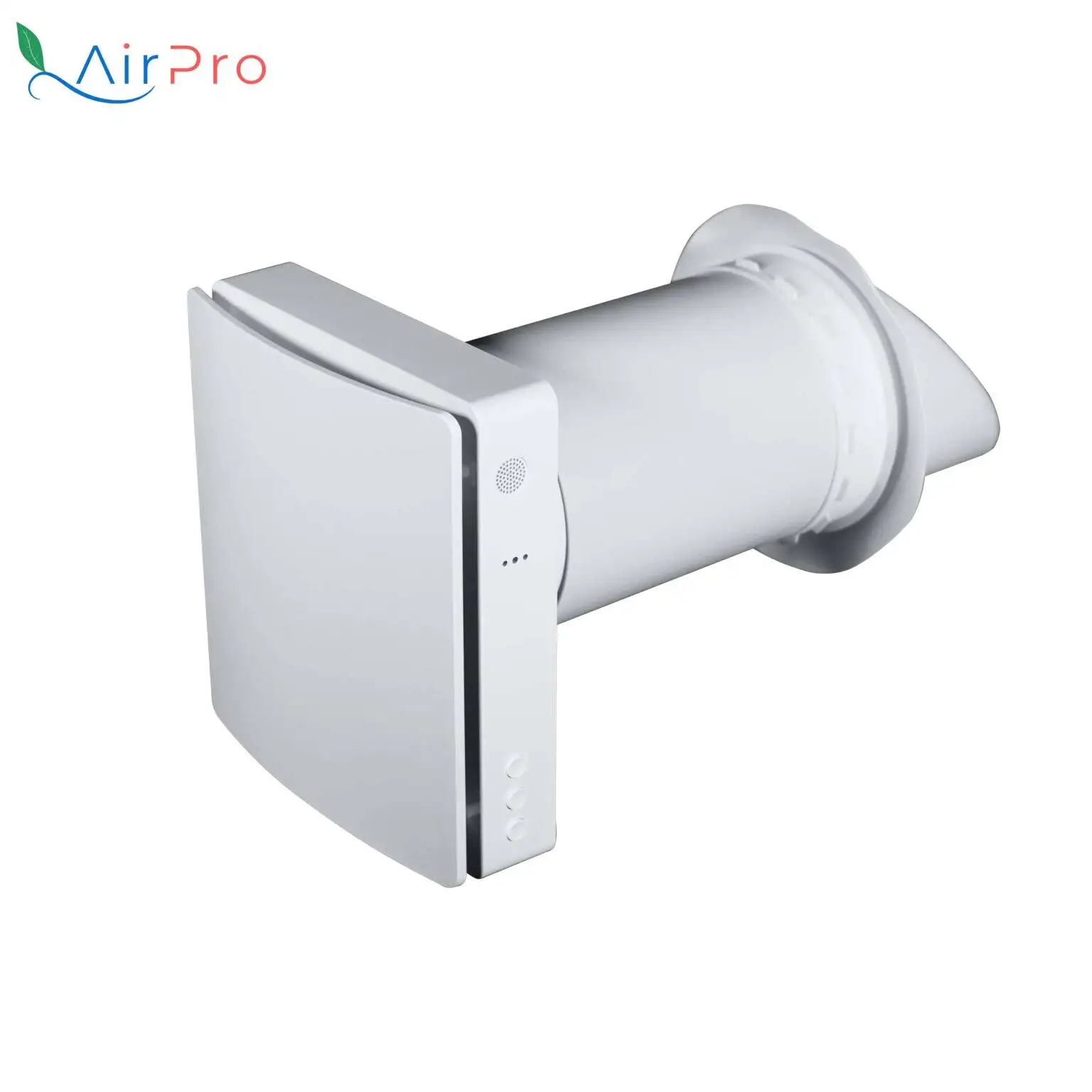

AP-AV-TTW5-W Single-Room Energy Recovery Fresh Air Supply Unit – Latest 2024 Upgrade
The fresh air supply unit features a reversible EC motor with low energy consumption of just 7.8W and three-speed operation. It runs quietly, with a noise level below 32.7dB(A). The system monitors indoor air quality, including outdoor temperature and indoor CO₂ levels. It also helps prevent mold growth. Equipped with a pre-filter and an F7 (MERV11) filter, it ensures clean and fresh air circulation.
Product Features
✅ Eco Pair Plus Air Shutter – Automatic Smoke & Dust Prevention
- Elegant decorative front panel.
- The indoor unit is specially designed for magnetic connection, ensuring maximum airtightness and wind protection.
- The integrated automatic shutter prevents air backflow, maintaining optimal air quality.
- Reversible DC Motor
The unit features a reversible axial fan with EC technology. The fan operates with low power consumption and quiet performance. The motor has integrated thermal protection and bearings to extend its lifespan.
- Ceramic Energy Recovery Unit
The high-tech ceramic energy accumulator provides up to 97% recovery efficiency, ensuring the capture of heat from exhaust air to heat or cool the incoming air supply. The unique cell structure of the recovery unit has a large air contact surface, offering high heat conductivity and energy storage capacity. The ceramic recovery unit is treated with antibacterial compounds to prevent bacterial growth inside.
- Air Filters
Two pre-filters and one F7 filter are standardly installed to filter both the supply air and exhaust air. These filters prevent dust and insects from entering the supply air and also protect the fan components from contamination. The filters are treated with antibacterial agents. They can be cleaned using a vacuum cleaner or by rinsing with water. The antibacterial solution will not be removed during cleaning.
🔋 Energy Saving / Heat Recovery 🔋
- Winter: The ventilation unit is designed for reverse operation with heat recovery mode and supply or exhaust air mode without recovery. When it’s cold outside, the unit operates in heat recovery mode with two cycles, offering over 30% energy savings compared to conventional exhaust fans. The heat recovery efficiency can reach up to 97% as the air passes through the recovery unit. It captures energy from inside the room, reducing the load on heating systems in winter.
- Summer: When it’s hot outside, the ventilation unit operates in heat recovery mode with two cycles. The supply and exhaust units alternate to achieve balanced ventilation. This enhances indoor comfort and makes ventilation more efficient. Heat and humidity inside the room can be recovered during ventilation, reducing the load on cooling systems in summer.
🔋 Multifunctional Control – Smartphone App and Smart Connectivity 🔋
🌈 Buy Eco Pair Plus now to experience a fresh living space and energy savings! 🌈
Learn more about the AP-AV-TTW5-W product with honeycomb core version: [Here]!

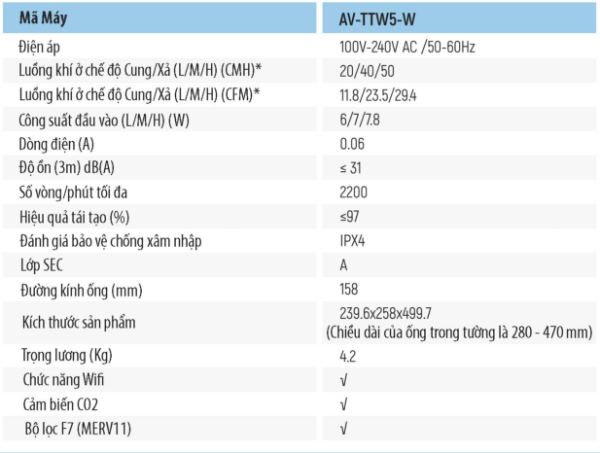

Thông số kỹ thuật
